The INLINE COMBI filters, the different filter chambers are connected ‘in line’. This brings several advantages. The flow through the filter has been further optimized in these models are ideal for replacing most existing chamber filters. The INLINE COMBI filter series consists of 2 models of more than one meter high and of 2 low models. The INLINE COMBI filters are only 75cm high and therefore suitable for many existing shallower filter rooms.
The width of the INLINE COMBI filters has also been taken into account, so that the filter fits easily through most doors, so easy!
Thanks to our custom work, the INLINE COMBI filters can be adjusted as desired with various options
Delivery 10-15 days
Specifications
- Article code
F2010016 - Type
AquaKing INLINE 50/55 - Model
Gravity or pump fed - Size (LxWxH)

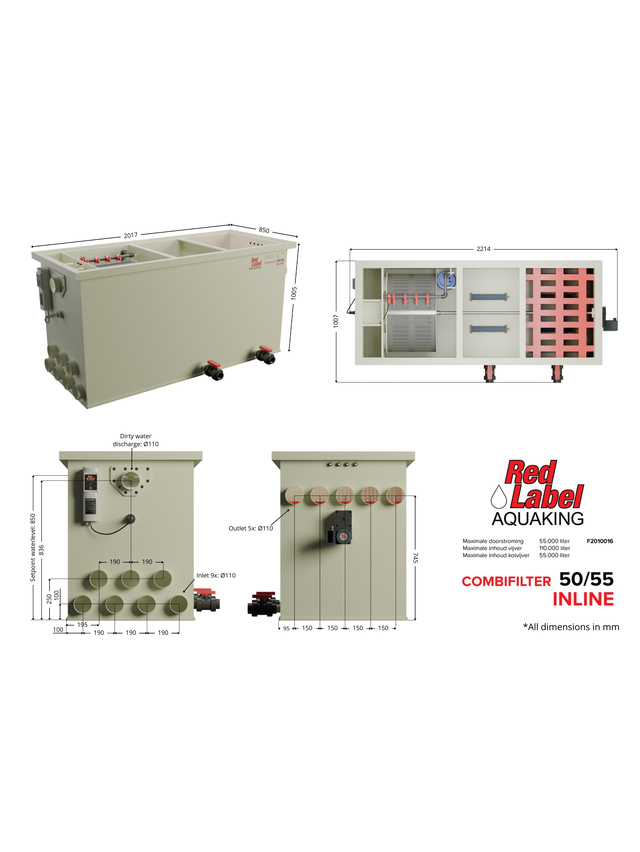

2172 x 850 x 1005 mm - Max. flow
55 m3/h /55000 Litres - Screens INOX
120 micron - Panel size
Diameter 400 x 650 mm - Inlet
7 x 110 mm - Outlet
4 x 110 mm - Waste drain
2 x 110 mm - Spraypump
Built-in Q800103 - Gear Motor
27 Nm - Controlbox
Controlbox BASIC | IP 65 - Material
PP - UVC
Built-in 40 Watt INOX
