The INLINE COMBI filters, the different filter chambers are connected ‘in line’. This brings several advantages. The flow through the filter has been further optimized in these models are ideal for replacing most existing chamber filters. The INLINE COMBI filter series consists of 2 models of more than one meter high and of 2 low models. The INLINE COMBI filters are only 75cm high and therefore suitable for many existing shallower filter rooms.
The width of the INLINE COMBI filters has also been taken into account, so that the filter fits easily through most doors, so easy!
Thanks to our custom work, the INLINE COMBI filters can be adjusted as desired with various options
Delivery 10-15 days
Specifications
- Article code
F2010013 - Type
AquaKing INLINE 20/25 LOW - Gravity or pump-fed versions

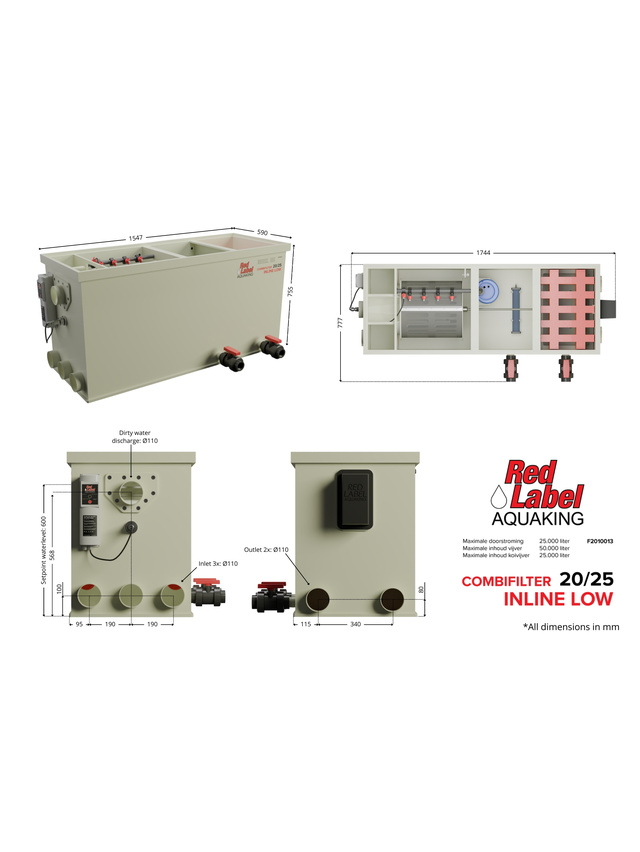

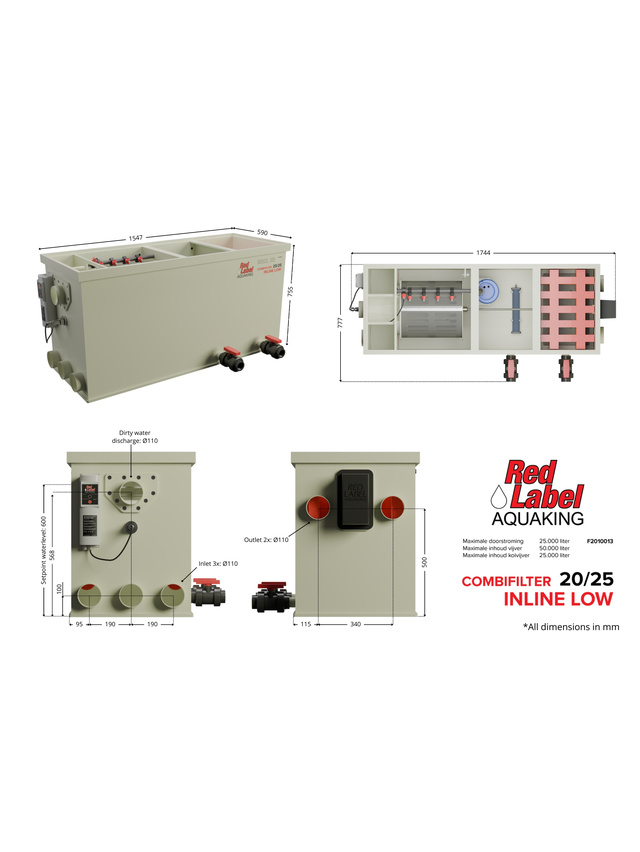

- Size (LxWxH)
1687 x 590 x 750 mm - Max. flow
25 m3/h - Filter panels stainless
steel 120 micron - Panel dimensions
Diameter 400 x 400 mm - Input
3 x 110 mm - Output
2 x 110 mm - Dirt removal
2 x 110 mm - Flush pump
Built-in Q800103 - Drive motor
27 Nm - Control box
Control cabinet BASIC | Ip 65 - Material
PP - UVC
Built-in 40 Watt STAINLESS STEEL
